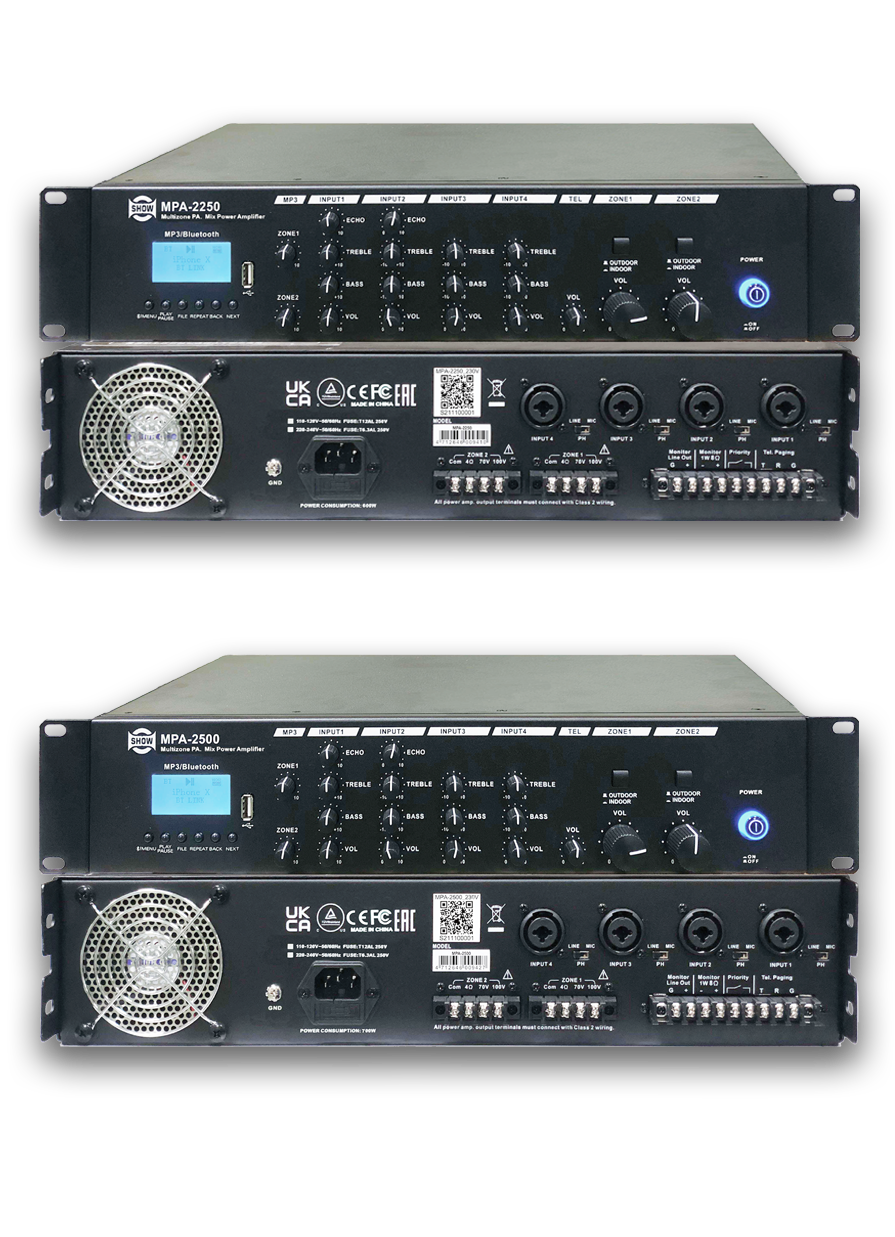

MPA-2250/MPA-2500

  • The Class-D Professional PA Amplifer series is desigend for hotels, supermarkets and schools.
  • It supplies excellent sound quality with easy operation to achieve outstanding performance.
  • The series has 5 inputs and 4 outputs. Use indoor or outdoor button separately according to different usage
  • MP3: USB, BT-5.0(optional BT-5.3)
MPA-2250/MPA-2500

2 Zons Class DPA.AMP series. The class D professional public address amplifire series are designed for small hotols.super-market and schools.They havc good porformancc and supply the cxccllont quality of sound.Besidos.users can operate easily.The class Dprolessional public address amplifire series have 5 inputs and 2 outputs.
The series includes the followirg models:MA-2250 (250W*2)/MA-2500 (500W*2).



Ahead panel

  • Input 1-Input 4 volume control
  • Input 1-Input 4 Bass and Treble contral
  • Input1-Input2 Echo function selection
  • USB,Bluetooth,and zone1 or zone2 sclection.
  • Zone1 and Zone2 have a master volume control.
  • One power switch


Rear panel

  • 4 channel MIC or line input.
  • 4 channel MIC/line/phantom selection switch
  • Zone1 and Zone2 output.
  • Output can choose 4ohm/70V/100V
  • FM antenna interface
  • AC Power supplyinput
  • Cooling fan

Specification

MPA-2250/MPA-2500

sine wave 1kHz,THD≤ 1%,LOAD 4Ω
MPA-2250:600W / MPA-2500:1000W

sine wave 1kHz,THD≤1%,LOAD 4Ω
MPA-2250:250W x 2 / MPA-2500:500W x 2

MIC (balanced)
-40dBv
LINE(balanced)
-5dBv

MIC (balanced input to preout)
-20dBv
LINE (balanced input to preout)
+15dBv

MIC(20-20000Hz)
>65dB
LINE(20-20000Hz)
>75dB

MIC @ 1/8 RMS
100Hz-15KHz
LINE @ 1/8 RMS
80Hz-18KHz

1W/RMS
≦1%

BASS @ 100 Hz
± 10dB
TREBLE @ 10kHz
± 10dB

MIC (balanced)
18V

MICI
-60dBv/3S

balance input
>60dB

500-2000Hz
<-60dB

all VR MAX
<30mv

all of inputs and outputs
<±5

638*543*188mm(25.12"x21.38"x7.40")

MPA-2250:12.4KG(27.34LBS) / MPA-2500:15.9KG(35.05LBS)
