NCL SERIES

  • 2 way
  • 4" and 6.5" woofer
  • Coaxial tweeter
  • 30 W - 60 W /16 Ω
  • 70V /100V
  • Tile bridge pack
  • Certified to EN 54-24:2008
NCL SERIES

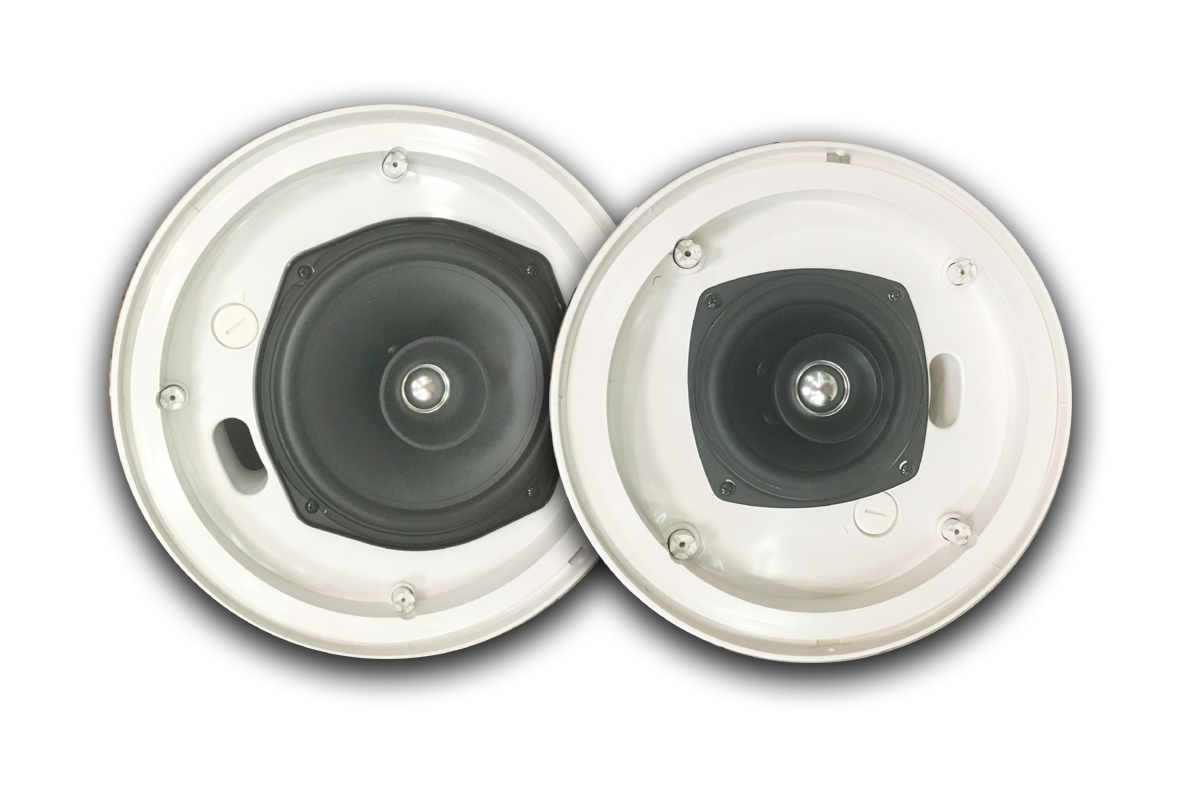

NCL Series features high-quality in-ceiling speakers, delivering exceptional sound quality as well for paging as BGM. It includes two models of two-way speaker equipped with a 4” or 6.5” driver and a coaxial tweeter. The stylish flat grille gives invisibility of the components, especially in rooms where discreet ceiling architecture is needed. The dog ear flip tabs mounting system makes the speakers easy and quick to install. The power ranges up to 30W and 60 W. It features power cable connection including a 16Ω position for low impedance parallel mode. The speakers are EN54-24 compliant



High-performance small-size ceiling speaker for broadcasting systems. Uses low-distortion coaxical speaker units;

Specification

Standard
Certified to the European Standard EN 54-24:2008
Loudspeaker for voice alarm systems for fire detection and fire alarm system.
Certification Cation NO.1438-CPR-0696
Environmental Type
TYPE A(indoor applications)
Built-in speaker
one 4"(105mm)woofer speaker
one piece 3/4"(19mm)tweeter speaker
Rated Noise Power and Voltage
30W(100V line and 70V line)
Rated Impedance.
100V line:328Ω (30W).656Ω (15W),1.327kΩ(7.5W)
70V line:164Ω (30W).328Ω (15W),656Ω(7.5W).1.327kΩ(7.5W)
BYPASS-16Ω
Sensitivity
86dB(1W, 1m) (500Hz-5 kHz, pink noise)
74dB(1W. 4m) (100Hz- 10 kHz pink noise) according to EN54-24
86dB (1W,1m) (100Hz - 10 kHz, pink noise) converted based on EN54-24
Frequency Response
100Hz-20kHz
Maximum Sound Pressure Level
87dB(30W,4m)(100Hz- 10 kHz pink noise) according to EN54-24
99dB(30W,4m)(100Hz- 10 kHz pink noise) according to EN54-24
Coverage Angle(-6dB)
180° (500Hz),170° (1 kHz),165° (2 kHz),105° (4 kHz)
Weight
2.6KG

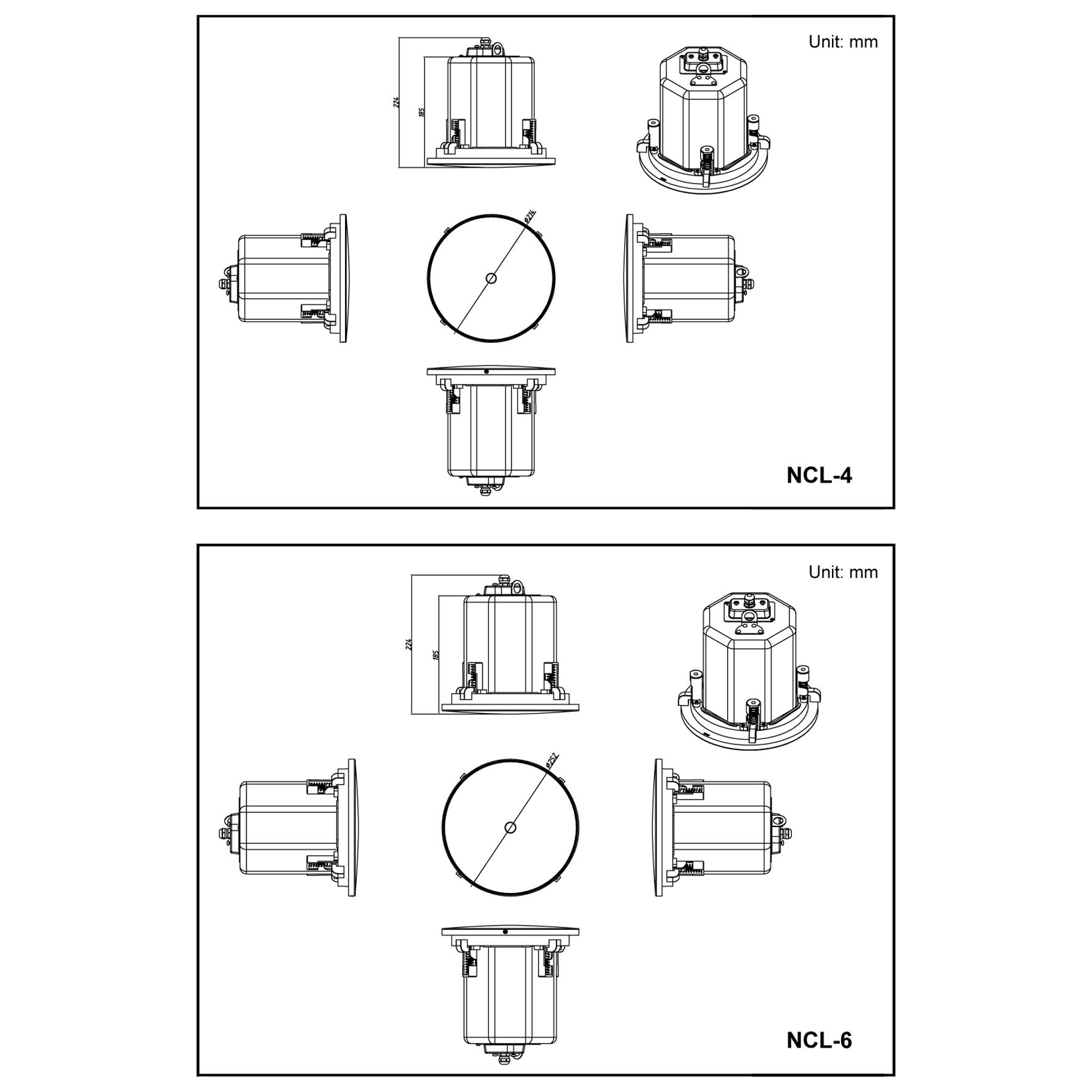

Dimensions(mm)
φ214*224mm
Speaker Component
4" paper cone speaker
Operating Temperature
-10°C to +55°C
Cable Connection
4Pin removable female screw temminal
Finish
Enciosure: Cold rolled iron plate&ABS+PC,White
Mesh speaker grill: Surface-treated steel plate,
White paint Speaker Wall bracket: Surface-treated
C-shaped bracket&tile support rails,white paint Screws and Stainless steel cable

Standard
Certified to the European Standard EN 54-24:2008
Loudspeaker for voice alarm systems for fire detection and fire alarm system.
Certification Cation NO.1438-CPR-0696
Environmental Type
TYPE A(indoor applications)
Built-in speaker
one 6.5(160.6mm)woofer speaker
one 3/4(19mm)tweeter speaker
Rated Noise Power and Voltage
60W(100V line and 70V line)
Rated Impedance.
100V line:164Q(60W).328Ω(30W),656Q(15W)
70V line:82Ω (60W).164Ω (30W),328Ω(15W).656Ω(7.5W)
BYPASS-16Ω
Sensitivity
91dB(1W,1m)(500Hz-5 kHz. pink noise)
78dB(1W,4m)(100Hz-10 kHz pink noise) according to EN54-24
90dB(1W,1m)(100Hz- 10 kHz pink noise) converted barad on EN54-24
Frequency Response
65Hz-20kHz
Maximum Sound Pressure Level
94dB(60W,4m)(100Hz- 10 kHz pink noise) according to EN54-24
106dB(60W,1m)(100Hz- 10 kHz pink noise)converted based on EN54-24
Coverage Angle(-6dB)
180° (500Hz).170°(1kHz).125°(2 kHz).80° (4 kHz)
Weight
3.5KG
Dimensions(mm)
φ252*224mm
Speaker Component
6.5* paper cone speaker
Operating Temperature
-10°C to +55°C
Cable Connection
4Pin removable female screw temminal
Finish
Enciosure: Cold rolled iron plate&ABS+PC,White
Mesh speaker grill: Surface-treated steel plate,
White paint Speaker Wall bracket: Surface-treated
C-shaped bracket&tile support rails,white paint Screws and Stainless steel cable
