MX.20

  •  Input Channels

  • Mono (Mic/Line): 12, Mono/Stereo: (Mic/Line): 4, Stereo (Line): 4

  • Output Channels

  • Stereo Out:2,Monitor Out:1, Phones:1, Aux Send:4, Group Out:4

  • On-board processors

  • 24 programs, Parameter Control: 2, Foot switch: 1

MX.20

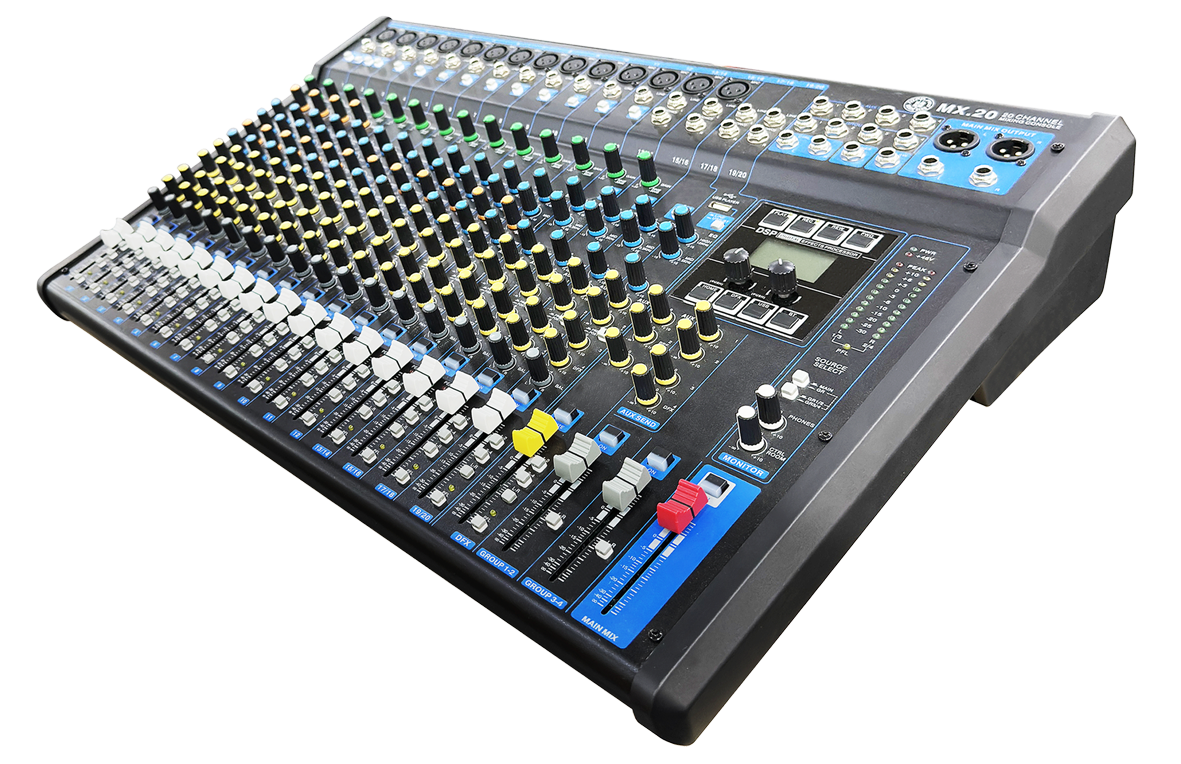

MX.20 is a 20-channel compact mixer 14 microphones / 20 line inputs (12 mono + 4 stereo) / 4 group buses + 1 stereo bus / 4 aux buses (including FX)

1. 14 microphones / 20 line inputs (12 mono + 4 stereo)
2. Ultra-low noise MIC preamplifier with +48 phantom power supply
3. 2 high-impedance inputs
4. 4- channel single knob controls dynamic compression
5. MIC channel low-cut filter
6. MIC channel 3-band EQ with sweep-able MID
7. Stereo channel 3-band EQ
8. 4 auxiliary bus and internal effect signals, (1 channel before the fader, 1 channel before and after the fader can be switched, 2 channels after the fader)
9. 4 group bus and 1-way stereo main output bus
10. 60mm fader control
11. Built in 24-bit DSP effect with adjustable parameters.
12. TYPE C USB port, can be connected to a computer for recording and playback
13. U disk playback and recording
14. Bluetooth 5.0 player

Specification

Microphone input
XLR with balanced
Frequency response
22Hz to 22KHz,+/-2dB
Distortion(THD+N)
<0.03% at +0dB,22Hz~22KHz A weighted
Gain range
0dB to 50dB
Max input
+20dB
LOW CUT
120Hz @18dB OCT
SNR
<100dBr A-weighted
Phantom power
+48V with switch control
Line input
1/4" TRS with balanced
Frequency response
22Hz to 22KHz,+/-2dB
Distortion(THD+N)
<0.03% at +0dB,22Hz-22KHz A-weighted
Sensitnity range
+20d8~-30dB
COMPRESSOR
GAIN.0-9dB THRESHOLD:20dB->5dB

Mic input
XLR with bailanced
Line input
1/4 TRS with balanced
Frequency response
22Hz to 22KHz,+/-2dB
Distortion(THD+N)
<0.03% at +0dB,22Hz~22KHz A-weighted
Sensitivity range
+20dBu~-30dBu
SNR
-100dBr A-weighted

High
Mono Channel/+/-15dB @12KHz Stereo Channel/+/-15dB @12KHz
Mid
Mono Channel+/-12dB @100Hz-8KHz Stereo Channel/ +/-15d8 @2.5KHz
Low
Mono Channel+/-15dB @80Hz Stereo Channel/ +/-15dB @80Hz

Microphane input
1.8KΩ
All other input
10KΩ or greater
All other output
120Ω

A/D an D/A comunrters
24bit
Types of effects
HALL1,HALL2ROOM1,ROOM2, STAGE, KARAOKE, SHORT DELAY LONG DELAY Pong DELAY, CHROUS, FLANGER, PHASER,TREMOLO, WAHWAH, MONO DELAY. REV+FLANGE,REV+CHROUS,REV+ PHASER,REV+MONO ECHO.REV+SHORT DELAY REV+LONG DELAY ECHO+FLANGE, ECHO+CHROUS, PITCH
Controis
PROGRAM encoder and EDIT encoder/Mute switch & Foat-switching with LED indicator
FOOT-SW
TIP:FX/SLEEV:GND
Transmission power
CLASS2 maximum 4dB
Frequency range
Bluetooth:2402-2480MHz
Maximum EIRP
Bluetooth:-4.07 dBm

Max. MAIN MIX output
+26dBu XLR balanced (+ 20dbu un-balanced)
AuX range
OFF to +10dB
Fader range
OFF to +10dB
PHONES/CONTROL-ROOM range
OFF to +10dB
Hum & Noise
<-80d8 @ 20Hz-22KHz A weighted, 1 channel & MAIN level:OdB, the other:Minimum
Crosstalk
<-80dB @0d8 20Hz-22KHz A weighted, MAIN level 0dB, the other:Minimum

Main voltage
100-240V-50/60Hz
Fuse
T1.25A AC250V
Rated power consumption
40W

(W)620.4mm*(H)111.5mm*(D)439.5mm / (W)24.43"* (H)4.53"* (D)17.3"

9.39KG
