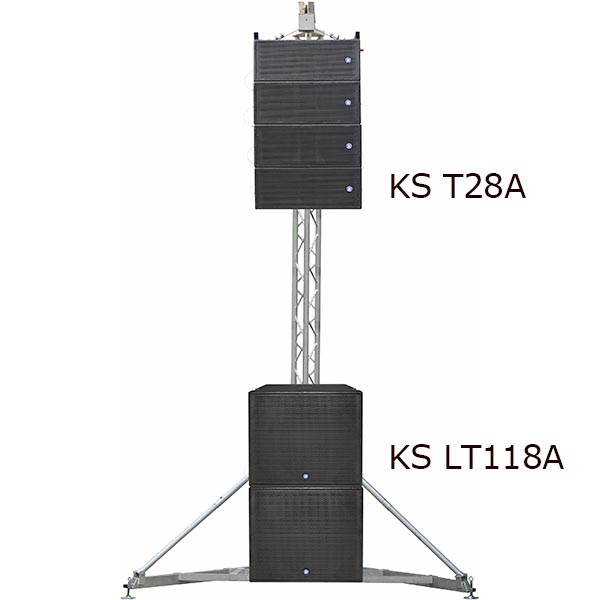

KS T28A

Professional Line Array System

  • 650W + 150W class D BI-AMP for KS T28A

  • 129dB max SPL

  • 48KHz, 32 bit DSP processing

DSP

KS ARRAY SERIES

KS T28A

• 650W class D Bi-amp for KS T28A
• Connectors: input: left mono (combo) / right (XLR-F) / output;  left mono / right (XLR-M), link-left / mono-right (XLR-M) balanced 15KΩ
• Volume control /power ON with green LED / clip limiter with red LED /  ground lift / IP control module (optional)
•  Protections: Thermal / convection fan / overload / digital lim /  compressor
•  Neutrik POWER CON® connector, 110-120V / 220-240V-50/60Hz switchable
•  Plywood cabinet, resistant black paint, metal grille with foam, KS T28A
• One metal standard pole-mount

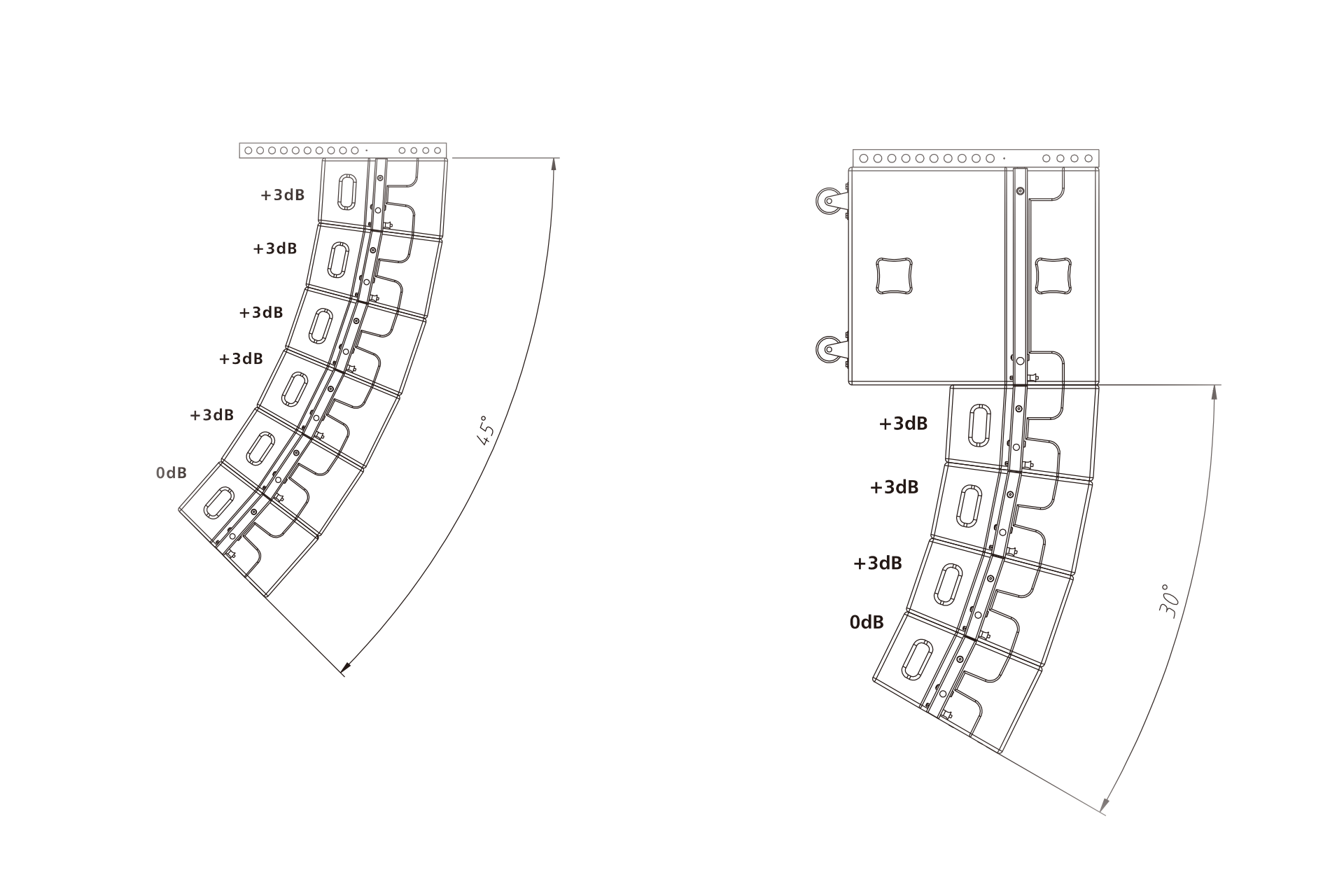

Deploying the system in suspension & Compression

Suspension

Deploying the system in suspension & Compression

Specification

KS T28A

2-Way Active Vented Speaker with DSP

2x8" woofer, 2" voice coil

100° nominal, single unit

7.5° variable with array configuration

65Hz-20KHz

at 2.0KHz with 24dB filter slope,
DSP process

129dB

800W continuous,
Bi-AMP. (Calss D-6500W LF, Class AB-150W HF)
1600W peak

Line in - Combo / Link-XLR

Flat / HF+3dB / User (Customer sound)

Combo connector -6dBu

Volume control / neutrik POWER CON© connector (Gray) offers linking the mains power supply power display with green LED / clip limiter with red LED / IP control module (optional)

Thermal / convection-fan / overload / digital lim. / compressor

Neutrik POWER CON© connector, 110-120V / 220-240V~50/60 switch mode

Integrated hardware for suspension in line array.
dual pole socket,
two handles

18mm calibrated plywood, black painted finish, 1.2T metal grille, power coating with internal foam

272 x 692 x424 mm (10.71" x 27.24" x 16.69")

29.1 kg (64.15 lbs)
