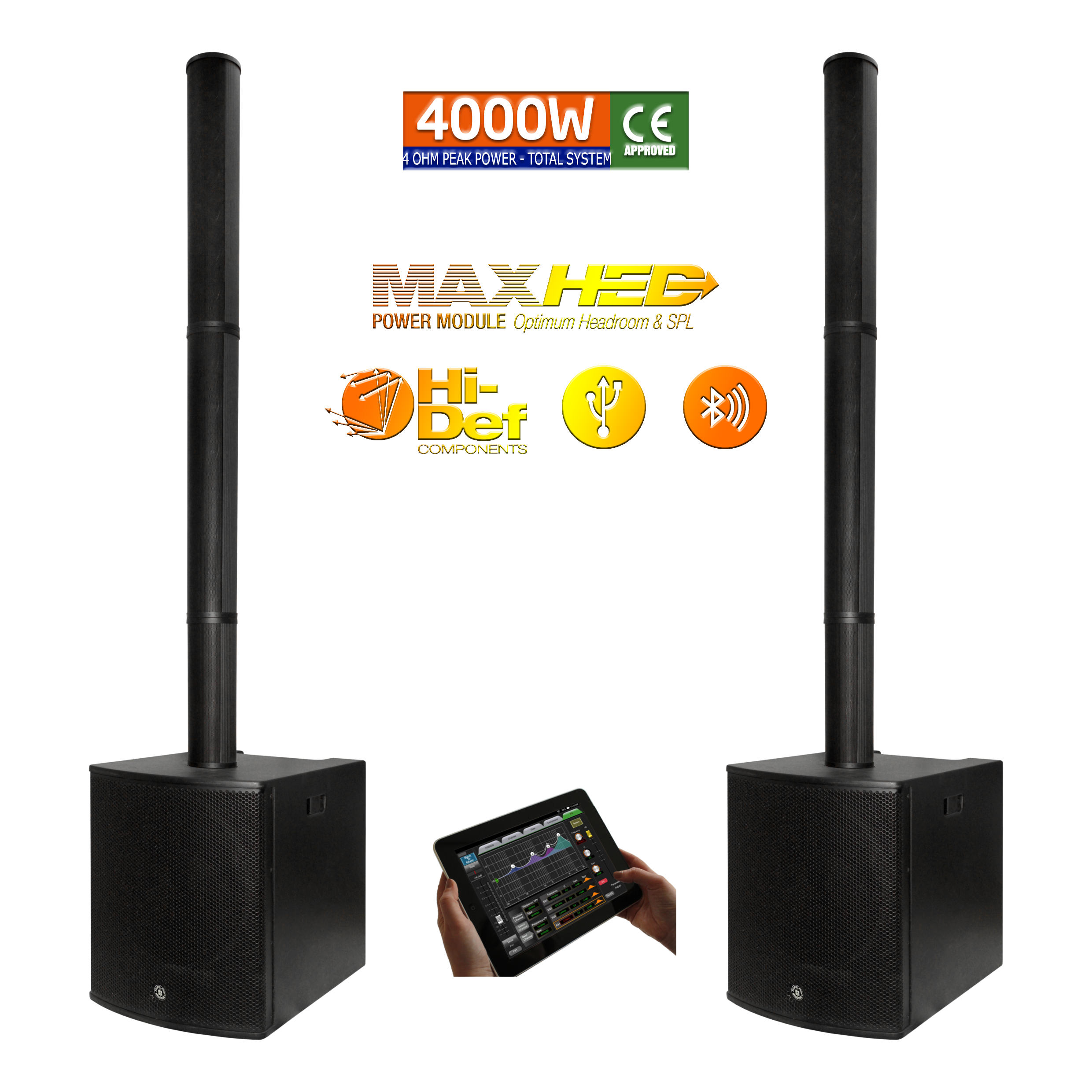

EVENT 2K SYSTEM

  • 15" Active Subwoofer & 12 x 3.5" Passive Speaker System
  • 1000W  Continuous / 2000W program / 4000W peak class D
  • 128dB max SPL
  • Frequency response: 40Hz-20KHz (-10dB)
  • Optional MP3 Player and BT module
DSP
Bluetooth
EVENT 2K SYSTEM
  • List of required materials -Computer(window system7-10)*1 -Router*1 -Network cable *1 -CS PRO 1.09 software*1 -EVENT 2K SYSTEM MKII/EVENT 4K SYSTEM *1PCS
  • Connect the router to the module network port and turn on the power.
  • Make the computer connect to the router and open software "CS PRO V1.0.9"
  • Click the "Refresh",and Click the "Device List"that appears.After the connection is OK,you can make initial debugging on this user page.

Specification

Frequency Response
40Hz-20KHz(-10dB)
Total Amplifier Power
1000W Continuous/2000W Program/4000W Peak Class D @ 4 Ohms
Maximum SPL@1M
128dB
Crossover Frequency
220Hz
Dispersion(-6dB)
120°Horizontal
Dimensions(WxHxD)
440x2015 x640mm (17.32"x 79.33x25.20)
Net Weight
37.81Kg(83.35lbs)

System Type
15" Active Subwoofer Speaker Cabinet
Frequency Response(-6dB)
40Hz-210Hz
Total Amplifier Power
1000W Continuous/2000W Program/4000W Peak Class D @4 ohms
Amplifier, Subwoofer
500W Continuous/1000W Program/2000W Peak Class D @ 4 0hms
Amplifier, Satellite
500W Continuous/1000W Program/2000W Peak Class D @ 4 Ohms
DSP Presets Modes
LIVE/Music/FLAT/SPEECH/DJ
Electronic Protections
Over heat Protection/Short Circuit Protection/Digital Compressor
Cooling
Temperature-controlled fan
Connections
Input: 4 x Combo-XLR&1/4”,1 x RCA In L&R,1 x 3.5 Stereo Jack, Output: 1 x XLR Thru&Mixout
External Controls
Volume Control/Switch for Input sens/Swtich for mode selector/Power ON with Green LED/Limiter with Red LED/Ground Lift/OLED DSP Display and Control /iP Control/MP3 and BT(option)
Power Supply
115V/230V~50/60Hz Switchable
Enclosure Construction
Plywood Cabinet,Resistant Black Paint,Metal Grille with Foam,Rubber Feet, integrated side handles
Mounting
Smart Mounting and Connection
Dimensions(WxHxD)
440x520.5x640mm(17.32"x20.49"x25.20")
Net Weight
26.1Kg(57.54 lbs)

Enclosure Construction
Aluminium Cabinet Metal Grille, Resistant Paint
Connector
2 x Electronic Adapter-1x Input Connector for Sub & Another with Input Connector for Satellite
Dimensions(WxHxD)
φ112.5x354mm(φ4.43"x13.94")
Net Weight
1.36Kg(3.0 lbs)

System Type
6 x 3.5" Passive Speaker System
Output Power
180W Continuous, 360W Program,720W Peak
Sensitivity(1W/1M)
96dB
Frequency Response(-6dB)
150Hz-20kHz
Impedance
16 ohms
Transducer Low
3.5" Woofer,1.0"(25.4mm) Voice Coil
Rotation
180 Degree Mechanical Adjustment
Enclosure Construction
Aluminium Cabinet, Metal Grille,Resistant Paint
Connector
2 x Electronic Adapter-1x input Connector for AX Pole & Another with Input Connector for AXV62TP
Dimensions(WxHxD)
φ112.5x609.7mm(φ4.43"x24.0")
Net Weight
5.2Kg(11.46 lbs)

System Type
6 x 3.5" Passive Speaker System
Output Power
180W Continuous, 360W Program,720W Peak
Sensitivity(1W/1M)
96dB
Frequency Response(-6dB)
150Hz-20kHz
Impedance
16 ohms
Transducer Low
3.5”Woofer,1.0”(25.4mm) Voice Coil
Rotation
180 Degree Mechanical Adjustment
Enclosure Construction
Aluminium Cabinet, Metal Grille, Resistant Paint
Connector
2 Pin smart connection
Dimensions(WxHxD)
φ112.5x583.2mm(φ4.43"x22.96")
Net Weight
5.15Kg(11.35 lbs)
