FLX3

  Compact Line Array System
  • POWER 80W PROGRAM
  • TRANSDUCER LOW
  • 2 x 3" Woofer, 0.75" Voice Coil
  • TRANSDUCER HIGH
  • 3 x 0.5" Voice Coil Neodymium Tweeter
FLX3

The unit can achieve flat& wide curve and more perfect sound effects based on special design such as PP cabinet built, LF equalizer in special structure, unique appearance and so on.

WAVEGUIDE:

 1. Perfect Sound Image

 2. 100°Horizontal, 10°Vertical Directivity ( one module)

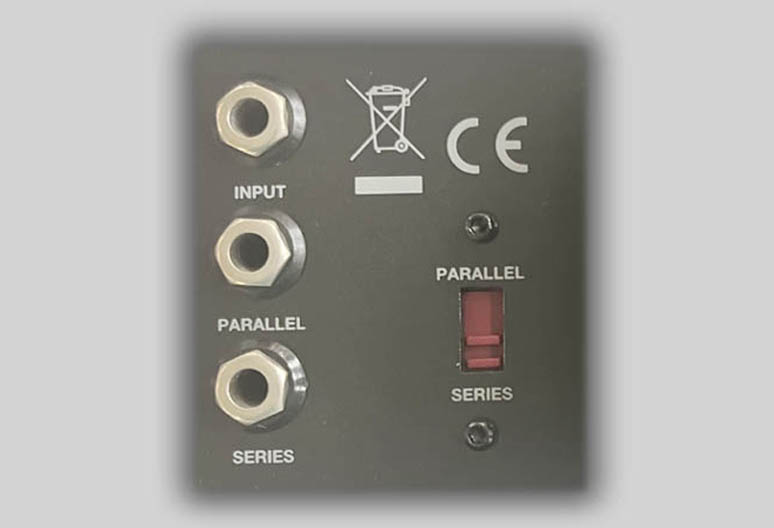

The back panel of the host uses a toggle switch and a 6.3Φ audio connection cable, which can match the output impedance of the power amplifier through multiple products in series and parallel, making it easier for users to adjust and configure the system;





Adjustable Rigging System,

Vertical Splay Adjustable in

0°-1.5°- 3.0°- 4.5°- 6.0°- 8.0°- 10° Increments from 0°-10°

Specification

FLX-3

3"2-way Passive System

40W Continuous，80W Program

90dB

106dB Max.(calculated)

100Hz-20kHz(-10dB)

8 ohms

2x3"Woofer,0.75" (19mm) Voice Coil

3xФ13mm (V.C) Neodymium Tweeter

2.5kHz

100°Horizontal,10°Vertical(one module)

Adjustable Rigging System, Vertical Splay Adjustable in0°-1.5°-3.0°-4.5°-6.0°-8.0°-10°Increments from 0°-10°

Parallel or Series p6.3mm Socket / Selection Switch

Polypropylene Enclosure,steel Metal Grille with foam

Steel Stirrup Material，3Flying Points

(W) 265mm x (H) 124mm x (D) 195mm; (W) 10.43" x (H) 4.88" x (D) 7.68"

approach 3.2kg / 7.05 lbs
